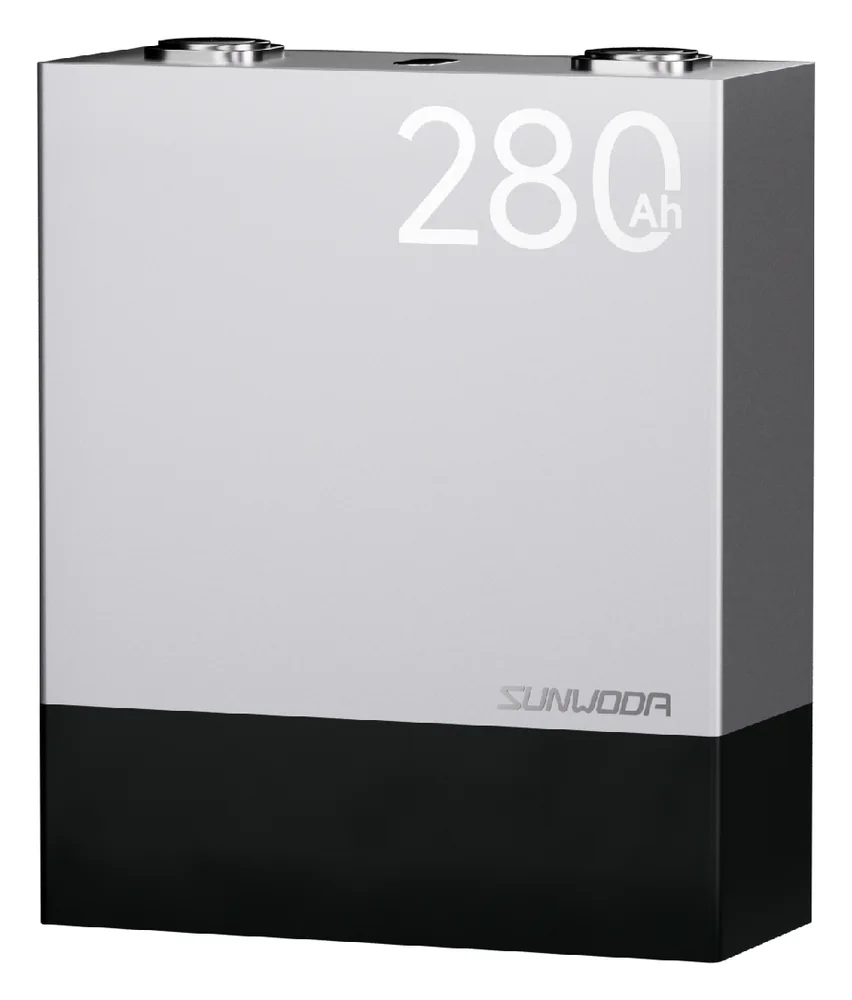

Sunwoda 280Ah 3.2V: genuine LiFePO4 cell, photo 1

174.3 × 71.5 × 206.8mm · 5.6kg

Ships from ChinaLiFePO4Genuine

Sunwoda

Sunwoda 280Ah 3.2V LiFePO4 · Prismatic

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
280Ah
Nominal voltage
3.2V
Energy per cell
896Wh
Max continuous discharge
1.2C
Indicative price€39.92per cell · excl. VAT and shipping from China

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original Sunwoda cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerSunwoda
Chemistrylithium iron phosphate (LiFePO4)
FormatPrismatic
Nominal capacity280Ah
Nominal voltage3.2V
Energy per cell896Wh
Charge voltage3.65V
Discharge cut-off voltage2.0V
Standard charge current0.5C
Max charge current1C
Max continuous discharge1.2C
Internal resistance (AC 1kHz)≤0.5mΩ
Dimensions174.3 × 71.5 × 206.8mm
Weight5.6kg
Gravimetric energy density160Wh/kg
Indicative price per kWh€45.00 / kWh

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

No documents have been published for this cell yet. The manufacturer's datasheet is sent with your quote.

Overview

This genuine Sunwoda LiFePO4 cell has a nominal capacity of 280Ah at 3.2V, giving 896Wh of energy per cell.

About this chemistry

LiFePO4 (lithium iron phosphate, LFP) is the most widely used chemistry for stationary storage and deep-cycle batteries. It is thermally very stable, contains no cobalt or nickel and typically lasts thousands of cycles. Each cell has a nominal voltage of 3.2V: four cells in series make a 12.8V battery, eight make 25.6V and sixteen make the 51.2V used by most home storage inverters.

About this format

Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.

Typical applications

Home and commercial energy storage, off-grid solar systems, campervans and motorhomes, boats, golf carts and light electric vehicles, telecom backup, DIY battery packs.
