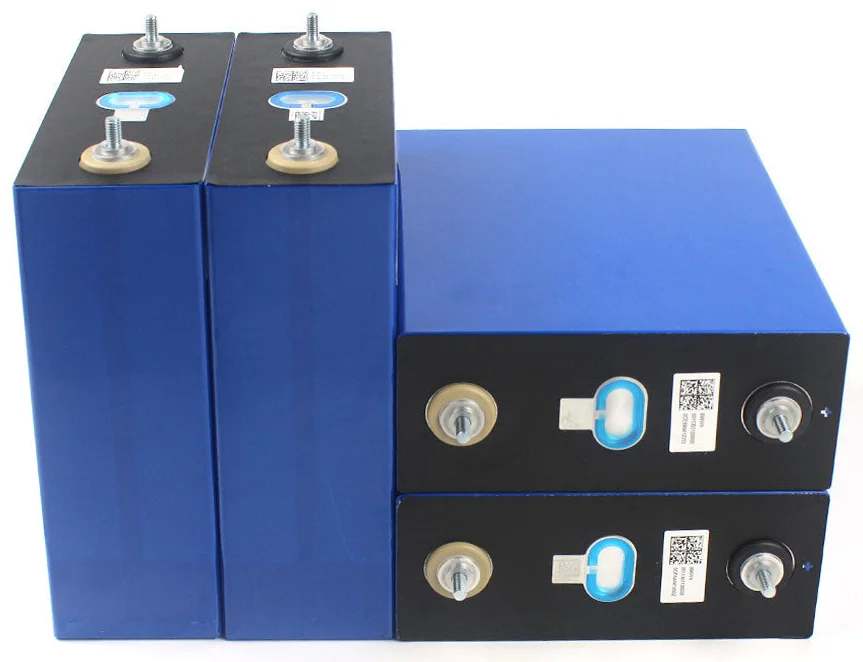

CATL 280Ah 3.2V: genuine LiFePO4 cell, photo 1

173.4 × 71.5 × 207mm · 5.4kg

In stock in EuropeLiFePO4Genuine

CATL

CATL 280Ah 3.2V LiFePO4 · Prismatic

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
280Ah
Nominal voltage
3.2V
Energy per cell
896Wh
Max continuous discharge
1C
Availability
Indicative price€61.77per cell · excl. VAT and shipping

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

In stock in Europe

Delivery within 10–20 calendar days of receiving payment.

Buy now on litio.storeThis cell is in stock in Europe. You can also order it directly from our online shop, where all payment methods are available.
Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original CATL cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerCATL
Chemistrylithium iron phosphate (LiFePO4)
FormatPrismatic
Nominal capacity280Ah
Nominal voltage3.2V
Energy per cell896Wh
Charge voltage3.65V
Discharge cut-off voltage2.0V
Standard charge current0.5C
Max charge current1C
Max continuous discharge1C
Internal resistance (AC 1kHz)0.17±0.05mΩ
Dimensions173.4 × 71.5 × 207mm
Weight5.4kg
Gravimetric energy density166Wh/kg
Indicative price per kWh€69.00 / kWh

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

Overview

This genuine CATL LiFePO4 cell has a nominal capacity of 280Ah at 3.2V, giving 896Wh of energy per cell.

About this chemistry

LiFePO4 (lithium iron phosphate, LFP) is the most widely used chemistry for stationary storage and deep-cycle batteries. It is thermally very stable, contains no cobalt or nickel and typically lasts thousands of cycles. Each cell has a nominal voltage of 3.2V: four cells in series make a 12.8V battery, eight make 25.6V and sixteen make the 51.2V used by most home storage inverters.

About this format

Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.

Typical applications

Home and commercial energy storage, off-grid solar systems, campervans and motorhomes, boats, golf carts and light electric vehicles, telecom backup, DIY battery packs.

Similar cells

EVE LF280K 280Ah 3.2V: genuine LiFePO4 cell, photo 1EU stockLiFePO4

EVE

LF280K

  • 280Ah
  • 3.2V
  • 896Wh
  • 1C
Indicative price€73.00per cell · excl. VAT and shipping

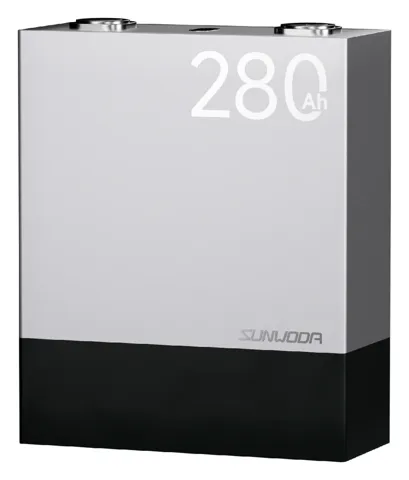

Sunwoda 280Ah 3.2V: genuine LiFePO4 cell, photo 1LiFePO4
