LTOHakadi · 60165
60165
- 40Ah
- 2.4V
- 96Wh
- 8C
Indicative price€31.57per cell · excl. VAT and shipping from China
Ø66 × 161mm · 1.23kg
In stock in EuropeLTOGenuine

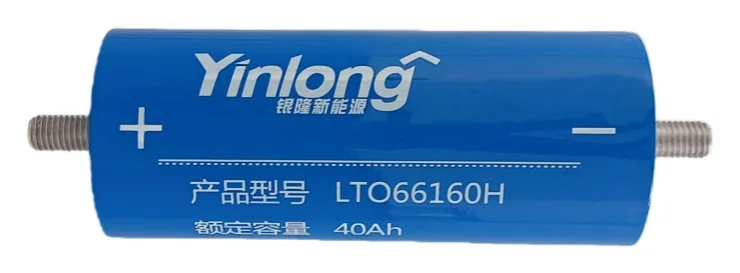

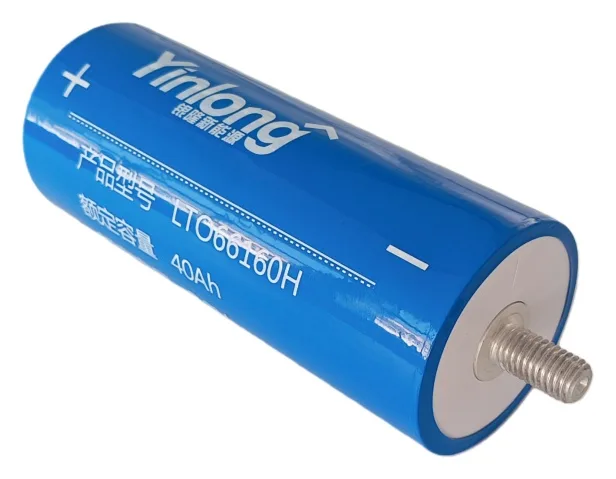

Yinlong 66160H 40Ah 2.3V LTO · Cylindrical 66160
Sold by Litio Store SRL · Selling batteries since 2015 · litio.store
- Nominal capacity
- 40Ah
- Nominal voltage
- 2.3V
- Energy per cell
- 92Wh
- Cycle life
- 16,000
In stock in Europe
Delivery within 10–20 calendar days of receiving payment.
Sold by Litio Store SRL
Italian company selling lithium batteries since 2015. VAT IT03894170541.
Visit litio.store ↗100% genuine cells
This is an original Yinlong cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.
Technical specifications
| Manufacturer | Yinlong |
|---|---|
| Model | YLE-LTO-66160/40Ah (66160H) |
| Chemistry | lithium titanate (LTO) |
| Format | Cylindrical |
| Size | 66160 |
| Nominal capacity | 40Ah |
| Nominal voltage | 2.3V |
| Energy per cell | 92Wh |
| Charge voltage | 2.9V |
| Discharge cut-off voltage | 1.5V |
| Standard charge current | 1C (40A) |
| Max charge current | 6C (240A) |
| Standard discharge current | 1C (40A) |
| Max continuous discharge | 6C (240A) |
| Pulse discharge | 10C (400A) 10s |
| Internal resistance (AC 1kHz) | ≤1.0mΩ (AC 1kHz, 50% SOC) |
| Cycle life | 16,000 cycles (Standard conditions to ≥80% capacity; 1000 cycles at 55°C ≥96%) |
| Dimensions | Ø66 × 161mm |
| Weight | 1.23kg |
| Gravimetric energy density | 75Wh/kg |
| Charge temperature | -40~65°C (≤1C below 0°C) |
| Discharge temperature | -40~65°C |
| Capacity at low temperature | ≥70% at -20°C; ≥53% at -40°C |
Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.
Downloads
Overview
The Yinlong 66160H is a genuine LTO cell with a nominal capacity of 40Ah at 2.3V, giving 92Wh of energy per cell.
About this chemistry
LTO (lithium titanate oxide) cells use a titanate anode instead of graphite. They accept very high charge and discharge currents, work at low temperatures and last from 10,000 to more than 25,000 cycles. Nominal voltage is about 2.3–2.4V per cell, so a 12V pack needs 5 or 6 cells in series. Energy density is lower than LiFePO4, but no other chemistry lasts as long.
About this format
Cylindrical cells have a steel can and are named after their size: the first two digits give the diameter and the following digits the length in millimetres (for example, 18650 = 18mm × 65mm). They are robust and consistent, and well suited to packs built with spot-welded nickel strip or cell holders.
Typical applications
Car and truck starter batteries, high-power and fast-charging applications, grid frequency regulation, cold climates, buses and industrial vehicles, systems designed to last for decades.
