LTOToshiba
SCiB
- 20Ah
- 2.3V
- 46Wh
- 25C
Indicative price€8.33per cell · excl. VAT and shipping from China
116 × 22 × 106mm · 545g
Ships from ChinaLTOGenuine

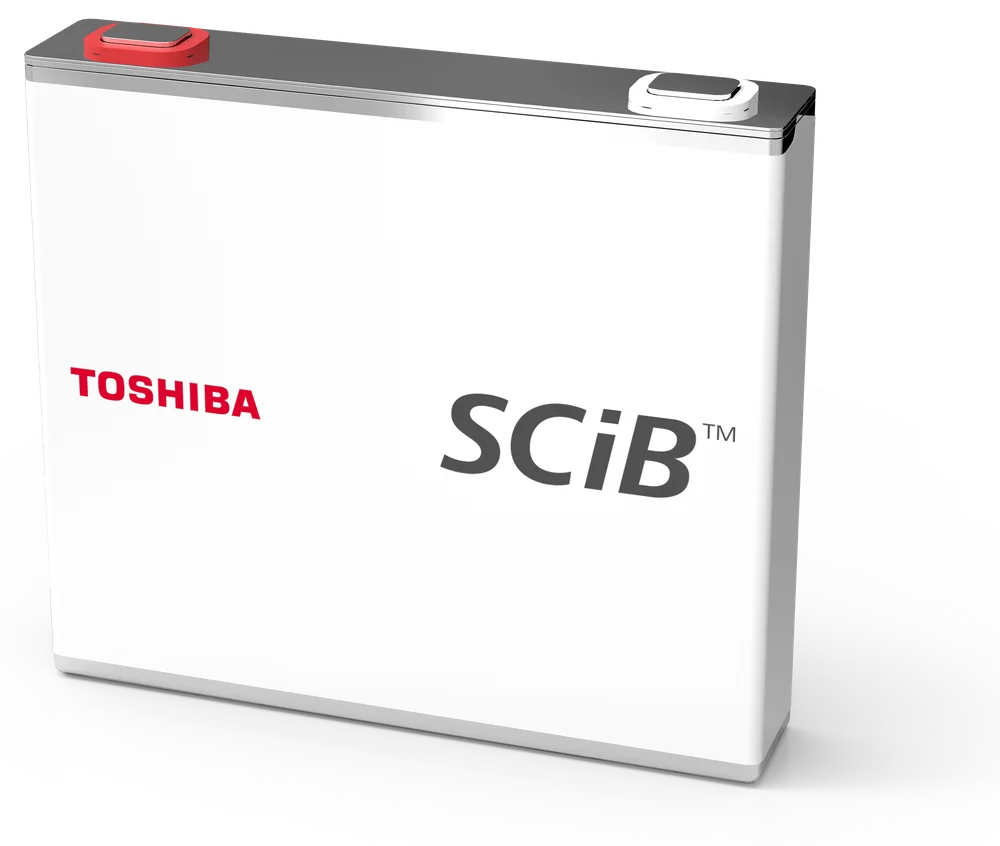

Toshiba SCiB 20Ah-HP 20Ah 2.3V LTO · Prismatic
Sold by Litio Store SRL · Selling batteries since 2015 · litio.store
- Nominal capacity
- 20Ah
- Nominal voltage
- 2.3V
- Energy per cell
- 46Wh
- Max continuous discharge
- –
Ships from China
We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.
Sold by Litio Store SRL
Italian company selling lithium batteries since 2015. VAT IT03894170541.
Visit litio.store ↗100% genuine cells
This is an original Toshiba cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.
Technical specifications
| Manufacturer | Toshiba |
|---|---|
| Model | SCiB 20Ah-HP |
| Chemistry | lithium titanate (LTO) |
| Format | Prismatic |
| Nominal capacity | 20Ah |
| Nominal voltage | 2.3V |
| Energy per cell | 46Wh |
| Pulse discharge | 1900W out; 1900W in (10s, 50% SOC) |
| Dimensions | 116 × 22 × 106mm |
| Weight | 545g |
| Gravimetric energy density | 84Wh/kg |
Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.
Downloads
Overview
The Toshiba SCiB 20Ah-HP is a genuine LTO cell with a nominal capacity of 20Ah at 2.3V, giving 46Wh of energy per cell.
About this chemistry
LTO (lithium titanate oxide) cells use a titanate anode instead of graphite. They accept very high charge and discharge currents, work at low temperatures and last from 10,000 to more than 25,000 cycles. Nominal voltage is about 2.3–2.4V per cell, so a 12V pack needs 5 or 6 cells in series. Energy density is lower than LiFePO4, but no other chemistry lasts as long.
About this format
Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.
Typical applications
Car and truck starter batteries, high-power and fast-charging applications, grid frequency regulation, cold climates, buses and industrial vehicles, systems designed to last for decades.
