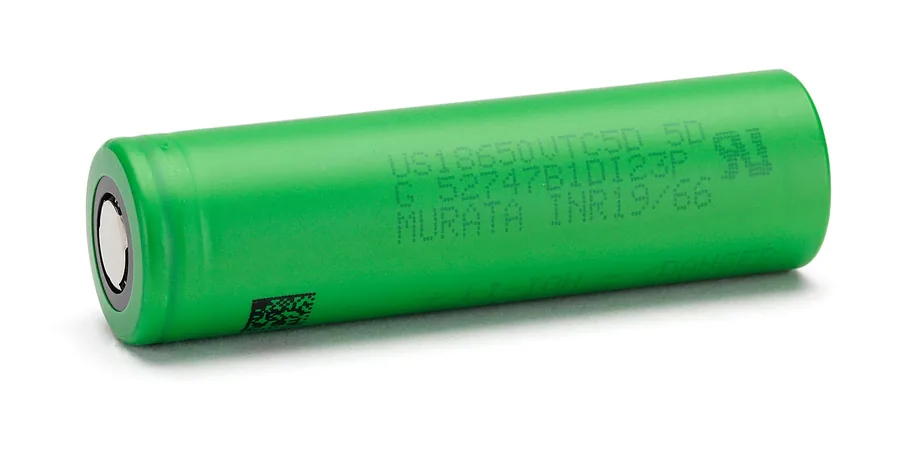

Murata US18650VTC5D 2,800mAh 3.6V: genuine Li-ion cell, photo 1

Ø18.5 × 65.25mm · 47g

Ships from ChinaLi-ionGenuine

Murata

Murata US18650VTC5D 2,800mAh 3.6V Li-ion · Cylindrical 18650

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
2,800mAh
Nominal voltage
3.6V
Energy per cell
10.1Wh
Max continuous discharge
40A
Price on requestAdd this cell to your quote request and we will reply with the exact price.

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original Murata cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerMurata
ModelUS18650VTC5D
Chemistrylithium-ion (NMC/NCA)
FormatCylindrical
Size18650
Nominal capacity2,800mAh
Nominal voltage3.6V
Energy per cell10.1Wh
Charge voltage4.2V
Discharge cut-off voltage2.0V
Standard charge current2.7A (CCCV 2.5h)
Standard discharge current0.54A (0.2C)
Max continuous discharge40A
DimensionsØ18.5 × 65.25mm
Weight47g
Gravimetric energy density215Wh/kg

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

Overview

The Murata US18650VTC5D is a genuine Li-ion cell with a nominal capacity of 2.8Ah at 3.6V, giving 10.1Wh of energy per cell.

About this chemistry

Lithium-ion cells with nickel-based cathodes (NMC, NCA and similar) have the highest energy density of all the chemistries we offer. Cylindrical 18650 and 21700 cells are used in e-bike, e-scooter, power tool and portable batteries. Nominal voltage is 3.6–3.7V per cell and the charge voltage is usually 4.2V. Choose high-capacity cells for range, or high-drain cells for power.

About this format

Cylindrical cells have a steel can and are named after their size: the first two digits give the diameter and the following digits the length in millimetres (for example, 18650 = 18mm × 65mm). They are robust and consistent, and well suited to packs built with spot-welded nickel strip or cell holders.

Typical applications

E-bikes and e-scooters, power tools, portable power stations, torches, drones, robotics, and custom packs where weight and size are critical.
