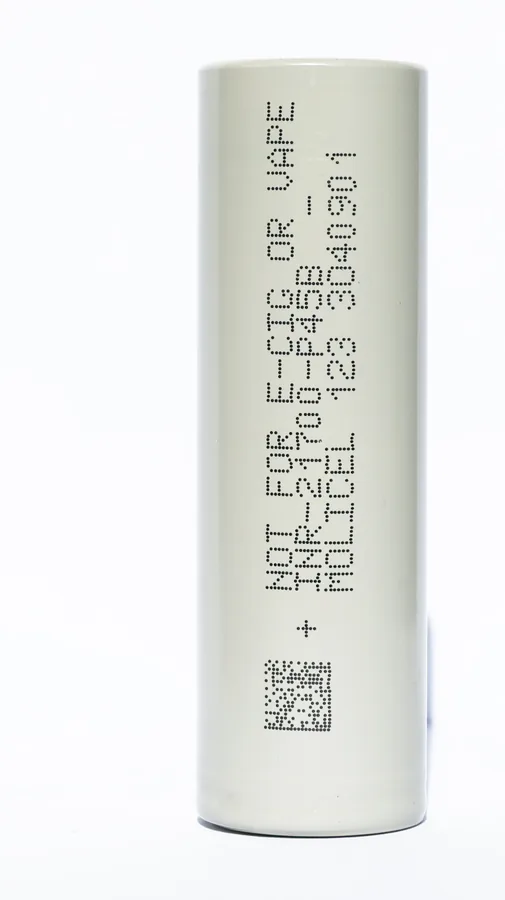

Molicel INR21700-P45B 4,500mAh 3.6V: genuine Li-ion cell, photo 1

Ø21.4 × 70mm · 70g

Ships from ChinaLi-ionGenuine

Molicel

Molicel INR21700-P45B 4,500mAh 3.6V Li-ion · Cylindrical 21700

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
4,500mAh
Nominal voltage
3.6V
Energy per cell
16.2Wh
Cycle life
500
Price on requestAdd this cell to your quote request and we will reply with the exact price.

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original Molicel cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerMolicel
ModelINR21700-P45B
Chemistrylithium-ion (NMC/NCA)
FormatCylindrical
Size21700
Nominal capacity4,500mAh
Nominal voltage3.6V
Energy per cell16.2Wh
Charge voltage4.2V
Discharge cut-off voltage2.5V
Standard charge current4.5A
Max charge current9A
Standard discharge current0.9A
Max continuous discharge45A
Pulse discharge~90A ~3s
Internal resistance (AC 1kHz)≤8mΩ (AC 1kHz)
Cycle life500 cycles (C500 @23°C: ≥80% at 4.5A, ≥75% at 10A, ≥70% at 20A discharge)
DimensionsØ21.4 × 70mm
Weight70g
Gravimetric energy density231Wh/kg
Charge temperature0~60°C
Discharge temperature-40~60°C

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

Overview

The Molicel INR21700-P45B is a genuine Li-ion cell with a nominal capacity of 4.5Ah at 3.6V, giving 16.2Wh of energy per cell.

About this chemistry

Lithium-ion cells with nickel-based cathodes (NMC, NCA and similar) have the highest energy density of all the chemistries we offer. Cylindrical 18650 and 21700 cells are used in e-bike, e-scooter, power tool and portable batteries. Nominal voltage is 3.6–3.7V per cell and the charge voltage is usually 4.2V. Choose high-capacity cells for range, or high-drain cells for power.

About this format

Cylindrical cells have a steel can and are named after their size: the first two digits give the diameter and the following digits the length in millimetres (for example, 18650 = 18mm × 65mm). They are robust and consistent, and well suited to packs built with spot-welded nickel strip or cell holders.

Typical applications

E-bikes and e-scooters, power tools, portable power stations, torches, drones, robotics, and custom packs where weight and size are critical.

Similar cells

BAK INR21700-45D 4,500mAh 3.6V: genuine Li-ion cell, photo 1Li-ion

BAK · 21700

INR21700-45D

  • 4,500mAh
  • 3.6V
  • 16.2Wh
  • 6.7C
Price on request
Lishen LR2170SF 4,500mAh 3.65V: genuine Li-ion cell, photo 1Li-ion

Lishen · 21700

LR2170SF

  • 4,500mAh
  • 3.65V
  • 16.4Wh
  • 3C
Price on request
Hakadi C4800 4,800mAh 3.63V: genuine Li-ion cell, photo 1Li-ion

Hakadi · 21700

C4800

  • 4,800mAh
  • 3.63V
  • 17.4Wh
  • 2C
Indicative price€1.84per cell · excl. VAT and shipping from China

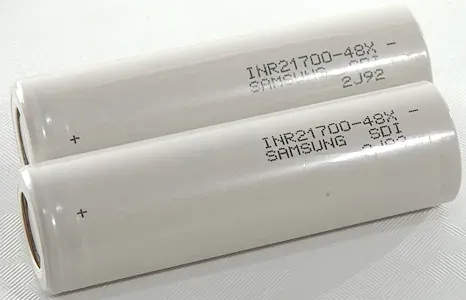

Samsung SDI INR21700-48X 4,800mAh 3.64V: genuine Li-ion cell, photo 1Li-ion
