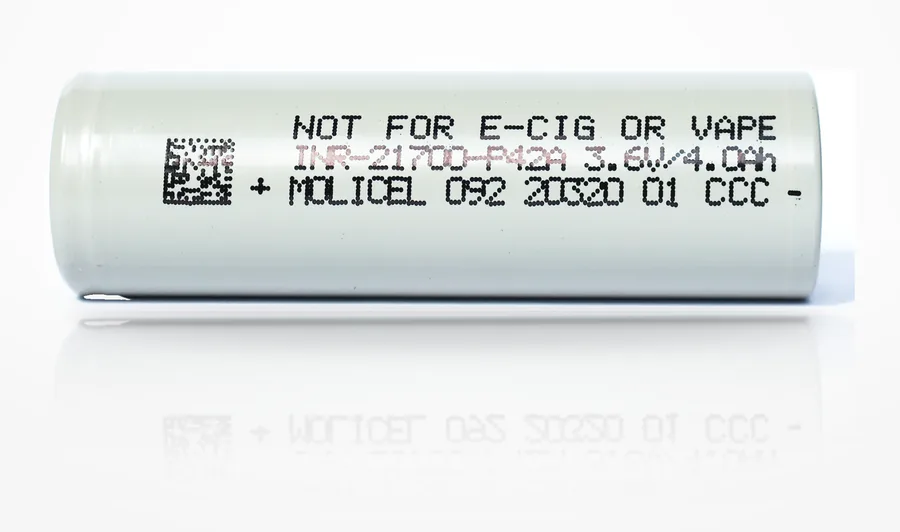

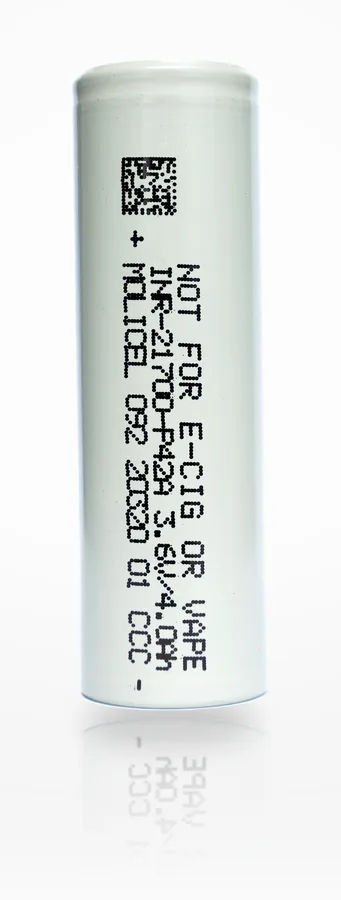

Molicel INR21700-P42A 4,200mAh 3.6V: genuine Li-ion cell, photo 1

Ø21.4 × 70.15mm · 70g

Ships from ChinaLi-ionGenuine

Molicel

Molicel INR21700-P42A 4,200mAh 3.6V Li-ion · Cylindrical 21700

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
4,200mAh
Nominal voltage
3.6V
Energy per cell
15.1Wh
Cycle life
500
Price on requestAdd this cell to your quote request and we will reply with the exact price.

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original Molicel cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerMolicel
ModelINR21700-P42A
Chemistrylithium-ion (NMC/NCA)
FormatCylindrical
Size21700
Nominal capacity4,200mAh
Nominal voltage3.6V
Energy per cell15.1Wh
Charge voltage4.2V
Discharge cut-off voltage2.5V
Standard charge current4.2A
Max charge current8.4A
Max continuous discharge45A
Internal resistance (AC 1kHz)<15mΩ (AC 1kHz)
Cycle life500 cycles (500 cycles at 4.2A charge; 10A discharge to 80%)
DimensionsØ21.4 × 70.15mm
Weight70g
Gravimetric energy density216Wh/kg
Charge temperature-20~60°C
Discharge temperature-40~60°C

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

Overview

The Molicel INR21700-P42A is a genuine Li-ion cell with a nominal capacity of 4.2Ah at 3.6V, giving 15.1Wh of energy per cell.

About this chemistry

Lithium-ion cells with nickel-based cathodes (NMC, NCA and similar) have the highest energy density of all the chemistries we offer. Cylindrical 18650 and 21700 cells are used in e-bike, e-scooter, power tool and portable batteries. Nominal voltage is 3.6–3.7V per cell and the charge voltage is usually 4.2V. Choose high-capacity cells for range, or high-drain cells for power.

About this format

Cylindrical cells have a steel can and are named after their size: the first two digits give the diameter and the following digits the length in millimetres (for example, 18650 = 18mm × 65mm). They are robust and consistent, and well suited to packs built with spot-welded nickel strip or cell holders.

Typical applications

E-bikes and e-scooters, power tools, portable power stations, torches, drones, robotics, and custom packs where weight and size are critical.
