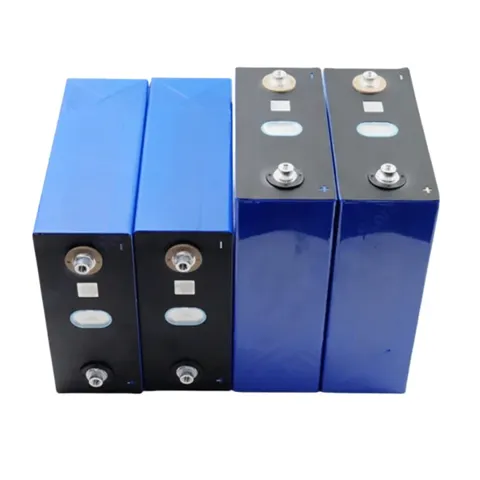

Sodium-ionHakadi
210Ah
- 210Ah
- 3V
- 630Wh
- 1C
Indicative price€58.12per cell · excl. VAT and shipping from China
174.2 × 72 × 204mm · 5kg
In stock in EuropeSodium-ionGenuine

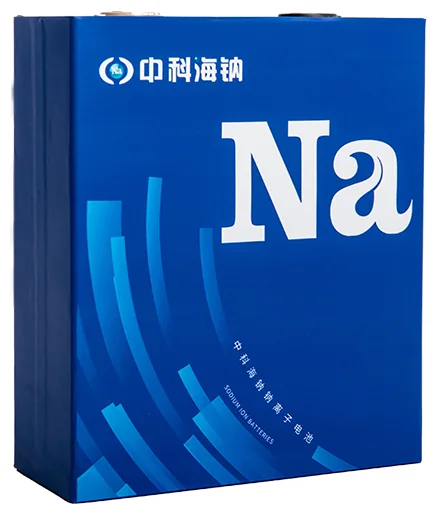

HiNa NA200 (ME200) 200Ah 3V Sodium-ion · Prismatic
Sold by Litio Store SRL · Selling batteries since 2015 · litio.store
- Nominal capacity
- 200Ah
- Nominal voltage
- 3V
- Energy per cell
- 600Wh
- Cycle life
- 3,500
In stock in Europe
Delivery within 10–20 calendar days of receiving payment.
Sold by Litio Store SRL
Italian company selling lithium batteries since 2015. VAT IT03894170541.
Visit litio.store ↗100% genuine cells
This is an original HiNa cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.
Technical specifications
| Manufacturer | HiNa |
|---|---|
| Model | NaCP73174207-ME200 |
| Chemistry | sodium-ion (Na-ion) |
| Format | Prismatic |
| Nominal capacity | 200Ah |
| Nominal voltage | 3V |
| Energy per cell | 600Wh |
| Charge voltage | 3.95V (3.80V at -10~0°C) |
| Discharge cut-off voltage | 2.0V |
| Standard charge current | 0.2C (40A) |
| Max charge current | 1C (200A) |
| Standard discharge current | 0.2C (40A) |
| Max continuous discharge | 1C (200A) |
| Internal resistance (AC 1kHz) | AC ≤0.25mΩ (1kHz) |
| Cycle life | 3,500 cycles (25°C, 0.5C/0.5C, to ≥70% capacity; ≥4000 cycles at 25°C 0.5C 2.0–3.9V (95% DOD); ≥2000…) |
| Dimensions | 174.2 × 72 × 204mm |
| Weight | 5kg |
| Gravimetric energy density | 120Wh/kg |
| Charge temperature | -10~60°C (current derated by temperature: 0.2C at -10~0°C, 0.5C at 20~35°C) |
| Discharge temperature | -40~60°C |
| Capacity at low temperature | ≥95% at 0°C, ≥85% at -20°C, ≥75% at -30°C (0.5C) |
Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.
Downloads
Overview
The HiNa NA200 (ME200) is a genuine Sodium-ion cell with a nominal capacity of 200Ah at 3V, giving 600Wh of energy per cell.
About this chemistry
Sodium-ion (Na-ion) cells use sodium instead of lithium. Sodium is abundant and inexpensive. These cells keep much of their capacity at very low temperatures, can be discharged to a very low voltage for safe transport and storage, and contain no lithium, cobalt or nickel. Nominal voltage is around 2.9–3.1V per cell, depending on the cathode (layered oxide or NFPP polyanion).
About this format
Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.
Typical applications
Storage in cold climates, starter and auxiliary batteries, stationary storage, telecom sites, and any application where safety and low-temperature performance matter more than energy density.
