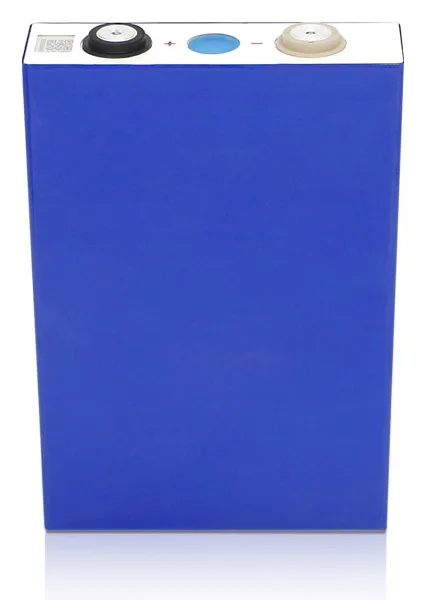

EVE LF90K 90Ah 3.2V: genuine LiFePO4 cell, photo 1

130.3 × 36.3 × 200.5mm · 1.99kg

Ships from ChinaLiFePO4Genuine

EVE

EVE LF90K 90Ah 3.2V LiFePO4 · Prismatic

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
90Ah
Nominal voltage
3.2V
Energy per cell
288Wh
Cycle life
6,000
Price on requestAdd this cell to your quote request and we will reply with the exact price.

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original EVE cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerEVE
ModelLF90K
Chemistrylithium iron phosphate (LiFePO4)
FormatPrismatic
Nominal capacity90Ah
Nominal voltage3.2V
Energy per cell288Wh
Charge voltage3.65V
Discharge cut-off voltage2.5V
Standard charge current0.5C
Max charge current1C
Standard discharge current0.5C
Max continuous discharge1C
Pulse discharge3C (30s)
Internal resistance (AC 1kHz)≤0.5mΩ
Cycle life6,000 cycles (25°C, 1C/1C)
Dimensions130.3 × 36.3 × 200.5mm
Weight1.99kg
Gravimetric energy density144Wh/kg

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

Overview

The EVE LF90K is a genuine LiFePO4 cell with a nominal capacity of 90Ah at 3.2V, giving 288Wh of energy per cell.

About this chemistry

LiFePO4 (lithium iron phosphate, LFP) is the most widely used chemistry for stationary storage and deep-cycle batteries. It is thermally very stable, contains no cobalt or nickel and typically lasts thousands of cycles. Each cell has a nominal voltage of 3.2V: four cells in series make a 12.8V battery, eight make 25.6V and sixteen make the 51.2V used by most home storage inverters.

About this format

Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.

Typical applications

Home and commercial energy storage, off-grid solar systems, campervans and motorhomes, boats, golf carts and light electric vehicles, telecom backup, DIY battery packs.
