LiFePO4CATL
202Ah
- 202Ah
- 3.2V
- 646Wh
- 1C
Indicative price€36.90per cell · excl. VAT and shipping from China
200.7 × 35.9 × 218.2mm · 3.5kg
Ships from ChinaLiFePO4Genuine

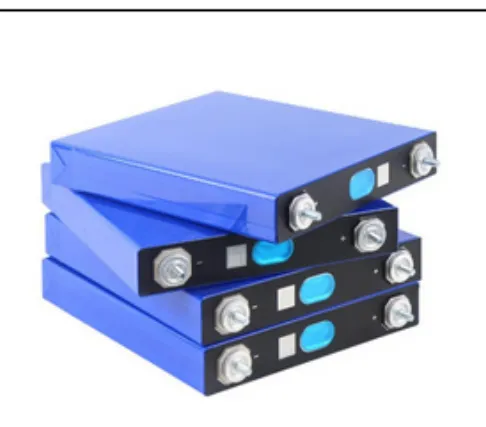

EVE 206Ah 3.2V LiFePO4 · Prismatic
Sold by Litio Store SRL · Selling batteries since 2015 · litio.store
- Nominal capacity
- 206Ah
- Nominal voltage
- 3.2V
- Energy per cell
- 659.2Wh
- Max continuous discharge
- 1C
Ships from China
We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.
Sold by Litio Store SRL
Italian company selling lithium batteries since 2015. VAT IT03894170541.
Visit litio.store ↗100% genuine cells
This is an original EVE cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.
Technical specifications
| Manufacturer | EVE |
|---|---|
| Chemistry | lithium iron phosphate (LiFePO4) |
| Format | Prismatic |
| Nominal capacity | 206Ah |
| Nominal voltage | 3.2V |
| Energy per cell | 659.2Wh |
| Charge voltage | 3.65V |
| Discharge cut-off voltage | 2.0V |
| Standard charge current | 0.5C |
| Max charge current | 1C |
| Max continuous discharge | 1C |
| Internal resistance (AC 1kHz) | ≤0.35mΩ |
| Dimensions | 200.7 × 35.9 × 218.2mm |
| Weight | 3.5kg |
| Gravimetric energy density | 188Wh/kg |
| Indicative price per kWh | €67.00 / kWh |
Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.
Downloads
Overview
This genuine EVE LiFePO4 cell has a nominal capacity of 206Ah at 3.2V, giving 659.2Wh of energy per cell.
About this chemistry
LiFePO4 (lithium iron phosphate, LFP) is the most widely used chemistry for stationary storage and deep-cycle batteries. It is thermally very stable, contains no cobalt or nickel and typically lasts thousands of cycles. Each cell has a nominal voltage of 3.2V: four cells in series make a 12.8V battery, eight make 25.6V and sixteen make the 51.2V used by most home storage inverters.
About this format
Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.
Typical applications
Home and commercial energy storage, off-grid solar systems, campervans and motorhomes, boats, golf carts and light electric vehicles, telecom backup, DIY battery packs.
