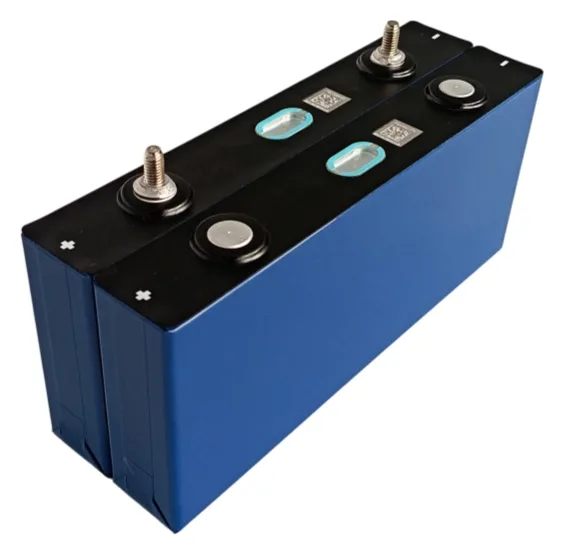

CALB L194F54 54Ah 3.2V: genuine LiFePO4 cell, photo 1

194.3 × 30.3 × 87mm · 1.08kg

Ships from ChinaLiFePO4Genuine

CALB

CALB L194F54 54Ah 3.2V LiFePO4 · Prismatic

Sold by Litio Store SRL · Selling batteries since 2015 · litio.store

Nominal capacity
54Ah
Nominal voltage
3.2V
Energy per cell
172.8Wh
Cycle life
3,500
Price on requestAdd this cell to your quote request and we will reply with the exact price.

Minimum 4 cells, in multiples of 4 (4, 8, 12, 16…).

Ships from China

We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.

Sold by Litio Store SRL

Italian company selling lithium batteries since 2015. VAT IT03894170541.

Visit litio.store ↗
100% genuine cells

This is an original CALB cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.

Technical specifications

ManufacturerCALB
ModelL194F54
Chemistrylithium iron phosphate (LiFePO4)
FormatPrismatic
Nominal capacity54Ah
Nominal voltage3.2V
Energy per cell172.8Wh
Charge voltage3.65V
Discharge cut-off voltage2.5V
Internal resistance (AC 1kHz)≤0.45mΩ (AC 1kHz)
Cycle life3,500 cycles (typical, conditions not stated)
Dimensions194.3 × 30.3 × 87mm
Weight1.08kg
Gravimetric energy density160Wh/kg
Charge temperature-30~55°C
Discharge temperature-35~55°C

Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.

Downloads

No documents have been published for this cell yet. The manufacturer's datasheet is sent with your quote.

Overview

The CALB L194F54 is a genuine LiFePO4 cell with a nominal capacity of 54Ah at 3.2V, giving 172.8Wh of energy per cell.

About this chemistry

LiFePO4 (lithium iron phosphate, LFP) is the most widely used chemistry for stationary storage and deep-cycle batteries. It is thermally very stable, contains no cobalt or nickel and typically lasts thousands of cycles. Each cell has a nominal voltage of 3.2V: four cells in series make a 12.8V battery, eight make 25.6V and sixteen make the 51.2V used by most home storage inverters.

About this format

Prismatic cells have a rigid rectangular aluminium case with threaded or flat terminals. They are easy to stack into compact packs with busbars and are the standard format for large-capacity cells. Large prismatic LiFePO4 cells should be mounted under light compression, as specified by the manufacturer.

Typical applications

Home and commercial energy storage, off-grid solar systems, campervans and motorhomes, boats, golf carts and light electric vehicles, telecom backup, DIY battery packs.
