Li-ionHakadi · 18650
D3000
- 3,000mAh
- 3.7V
- 11.1Wh
- 5C
Indicative price€1.74per cell · excl. VAT and shipping from China
Ø18.56 × 65.23mm · 50g
Ships from ChinaLi-ionGenuine

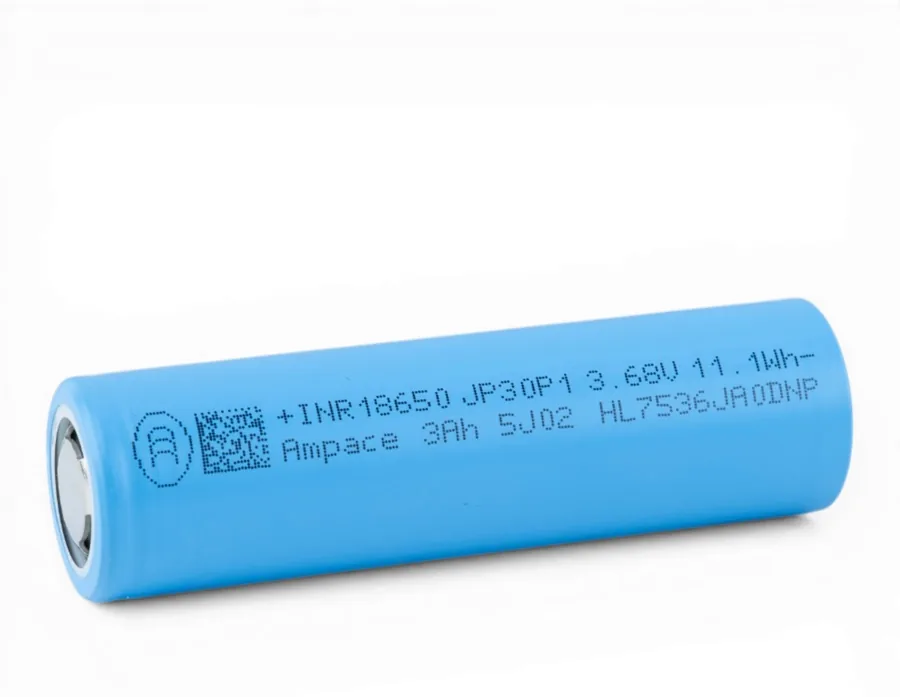

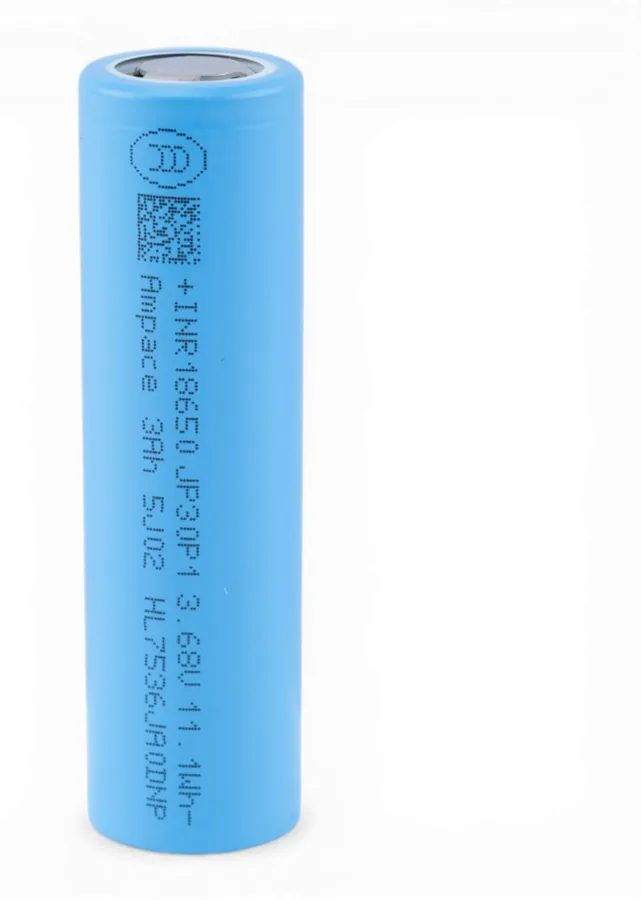

Ampace INR18650-JP30 3,000mAh 3.68V Li-ion · Cylindrical 18650
Sold by Litio Store SRL · Selling batteries since 2015 · litio.store
- Nominal capacity
- 3,000mAh
- Nominal voltage
- 3.68V
- Energy per cell
- 11Wh
- Cycle life
- 600
Ships from China
We import the cells into the EU ourselves. The delivery time is stated in your quote; by sea it is usually 3–4 months.
Sold by Litio Store SRL
Italian company selling lithium batteries since 2015. VAT IT03894170541.
Visit litio.store ↗100% genuine cells
This is an original Ampace cell. We do not sell relabelled, rewrapped or counterfeit cells. LiFePO4 Cells is run by Litio Store SRL, an Italian company that has been selling lithium batteries since 2015. If anything is wrong, contact us and we will sort it out.
Technical specifications
| Manufacturer | Ampace |
|---|---|
| Model | INR18650-JP30 |
| Chemistry | lithium-ion (NMC/NCA) |
| Format | Cylindrical |
| Size | 18650 |
| Nominal capacity | 3,000mAh |
| Nominal voltage | 3.68V |
| Energy per cell | 11Wh |
| Charge voltage | 4.2V |
| Discharge cut-off voltage | 2.5V |
| Standard charge current | 1.5A (0.5C) |
| Max charge current | 9A (25~60°C) |
| Standard discharge current | 0.6A (0.2C) |
| Max continuous discharge | 36A (56A with 80°C cut-off) |
| Pulse discharge | 140A 5s |
| Internal resistance (AC 1kHz) | ≤5mΩ (AC 1kHz) |
| Cycle life | 600 cycles (≥60% after 600 cycles, 6A chg; 20A dis, 25°C (400 cycles at 30A)) |
| Dimensions | Ø18.56 × 65.23mm |
| Weight | 50g |
| Gravimetric energy density | 220Wh/kg |
| Charge temperature | -10~60°C |
| Discharge temperature | -20~80°C |
Specifications as stated by the manufacturer. Values may vary slightly between production batches; the datasheet sent with your quote is the reference.
Downloads
No documents have been published for this cell yet. The manufacturer's datasheet is sent with your quote.
Overview
The Ampace INR18650-JP30 is a genuine Li-ion cell with a nominal capacity of 3Ah at 3.68V, giving 11Wh of energy per cell.
About this chemistry
Lithium-ion cells with nickel-based cathodes (NMC, NCA and similar) have the highest energy density of all the chemistries we offer. Cylindrical 18650 and 21700 cells are used in e-bike, e-scooter, power tool and portable batteries. Nominal voltage is 3.6–3.7V per cell and the charge voltage is usually 4.2V. Choose high-capacity cells for range, or high-drain cells for power.
About this format
Cylindrical cells have a steel can and are named after their size: the first two digits give the diameter and the following digits the length in millimetres (for example, 18650 = 18mm × 65mm). They are robust and consistent, and well suited to packs built with spot-welded nickel strip or cell holders.
Typical applications
E-bikes and e-scooters, power tools, portable power stations, torches, drones, robotics, and custom packs where weight and size are critical.
